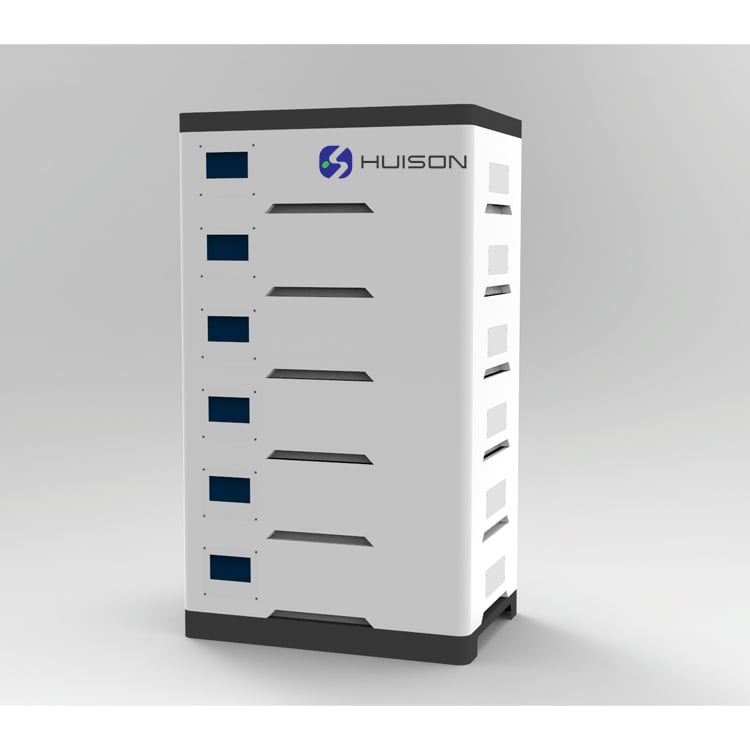

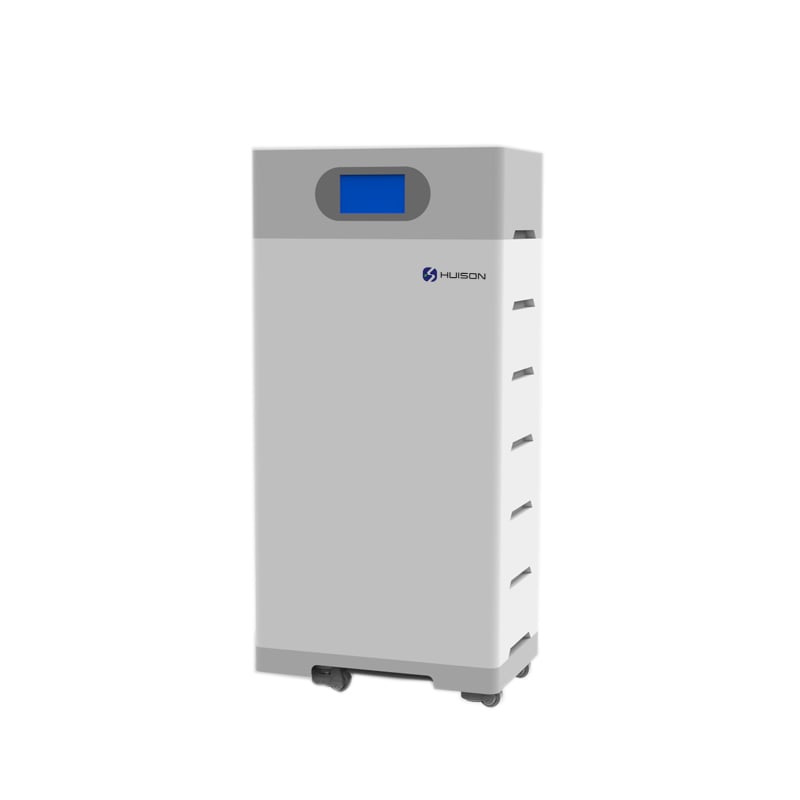

Solar 51.2V 48V 100Ah 10KWh 15KWh 20KWH Lifepo4 Batteries Energy Storage Stackable Battery Home Batteries Residential Lithium battery UL9540 UL9540A UN38.3 Certifications

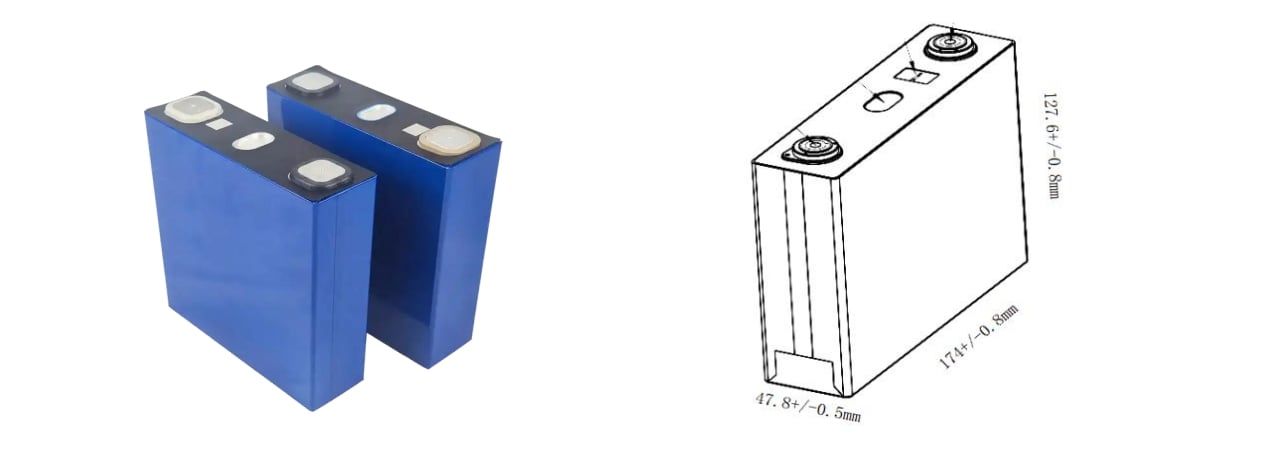

No.

Item

Standard

Note

1

Normal capacity

100Ah

25℃ Ambient, 0.5C Rate

2

Impedance @1KHz

≤0.40mΩ

3

Charge temperature

0~60℃

4

Discharge temperature

-20~60℃

5

Storage temperature range

-30~35℃

6months / 25%~40%SOC   ≤85%RH / No condensation

6

Max charge voltage

3.65V

25±2℃ Ambient

7

Standard charge rate

0.5C

25±2℃ Ambient

8

Maximum charge rate

1.0C

25±2℃ Ambient

9

Discharge cut-off volt

2.5V 2.0V

0℃≤ T ≤60℃ -20℃≤ T ≤0℃

10

Standard discharge rate

0.5C

25±2℃ Ambient

11

Max continuous discharge

1.0C

25±2℃ Ambient

12

Cycle life @25℃ Ambient

>=3000 Times

1.0C rate / 100%DOD / 80%SOH

>=6000 Times

0.5C rate / 100%DOD / 70%SOH

Item

Parameters

Note

Cell string range

16S

Voltage Protection

Abnormal high voltage

3900mV

Adjustable

Over-charge voltage

3750mV

Adjustable

Over-discharge voltage

2500mV

Adjustable

Balance open voltage

3500mV

Adjustable

Pre-charge open voltage

2400mV

Adjustable

Forbid charge @low voltage

2000mV

Adjustable

Current Protection

Over-current protection-Charge

150A or 20mV

Adjustable

Over-current protection-discharge ( 1)

150A or 20mV

Adjustable

Over-current protection-discharge (2)

30mV

Adjustable

Short-circuit protection

50mV

Adjustable

Current limitation protection

150A

Adjustable

Temperature Protection

Charge-High temperature

60℃

Adjustable

Charge-Low temperature

0℃

Adjustable

Discharge-High temperature

65℃

Adjustable

Discharge-Low temperature

-20℃

Adjustable

Temperature Protection

MOSFET-High temperature

80℃

Adjustable

MOSFET-Low temperature

-20℃

Adjustable

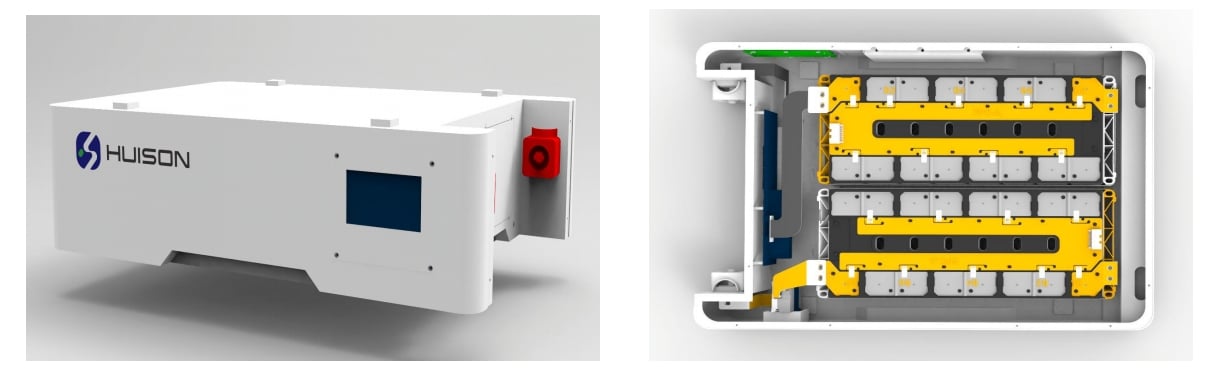

ELECTRICAL PERFORMANCE

Rated voltage

51.2Vdc

Voltage range

40.0~57.6Vdc

Charge current

≤ 100C

Discharge current

≤ 150C

Peak/Max current

1.5C @10s

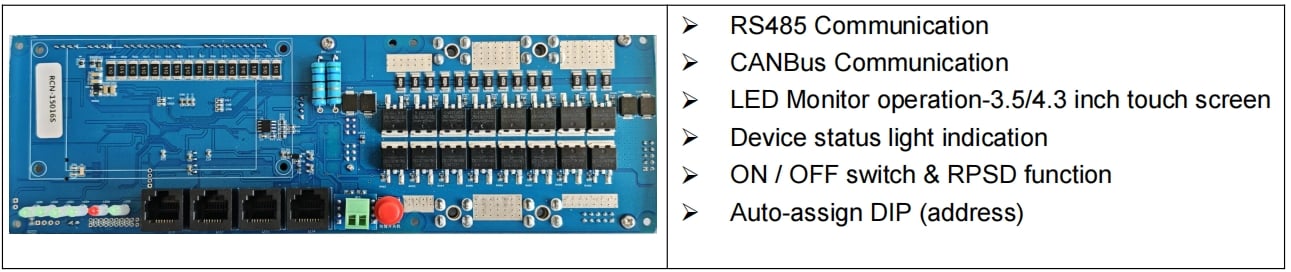

Communication

RS485 / CANBus

Cycle times (Life)

6000+ Times (≥10 years) @80%DOD

Extended quantity

Up to 32pcs ( 160KWh)

ENVIRONMENT & OTHERS

IP level

IP50 (Indoor scenario)

Charge temp.

0 ~ 50℃

Discharge temp.

-20 ~ 60℃

Storage temperature

-20 ~ 45℃

Certificate

Cell: UL1973, UL9540,UL1642, IEC62619, IEC62133, UN38.3, etc Module: UL9540A, UL1973, IEC62619, UN38.3,CE, RoHS, etc

Dimension & Weight

640*450* 170mm / 50±1 Kg

Lid mechanical performance

Size

640x450 x40mm

Weight

3. 1Kg

Threading hole

Φ42mm

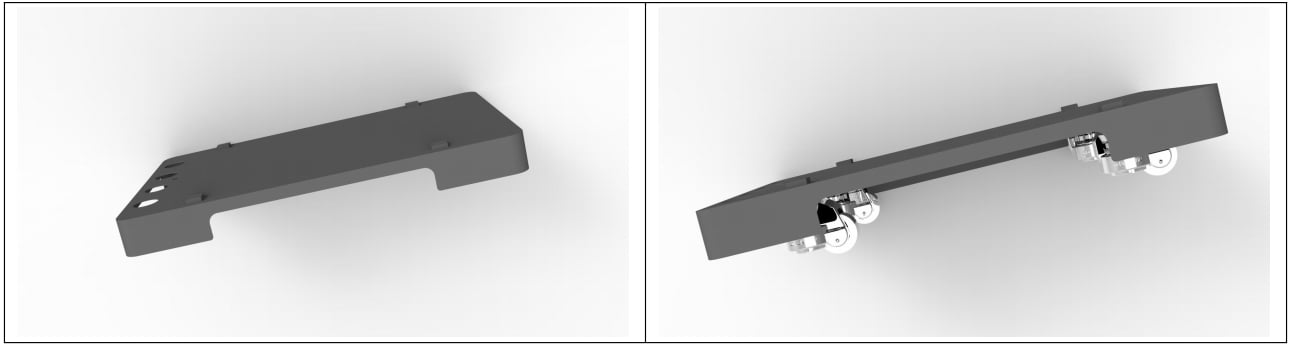

Bottom base mechanical performance

Size

640x450x60mm Excluding casters

Weight

7.5Kg

Threading hole

Φ42mm

load bearing capacity

1t, max 8 batteries

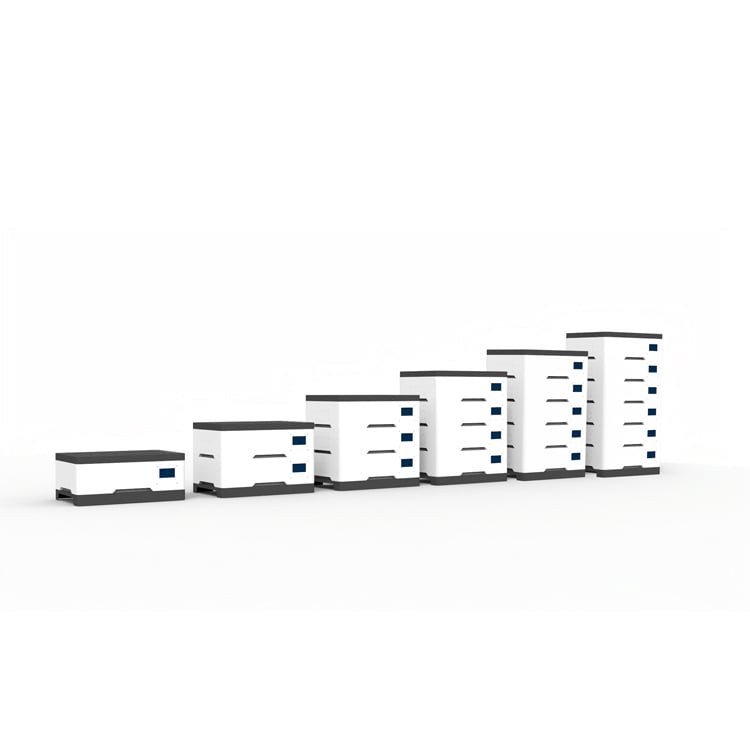

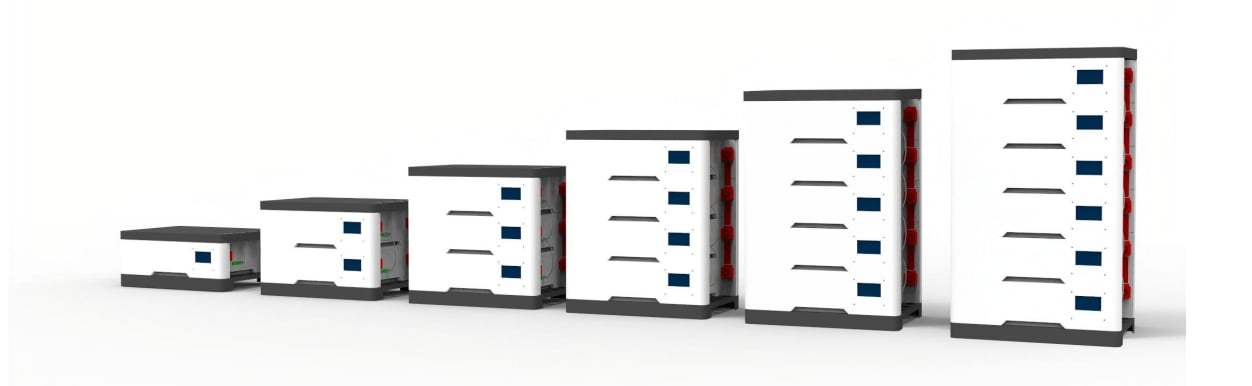

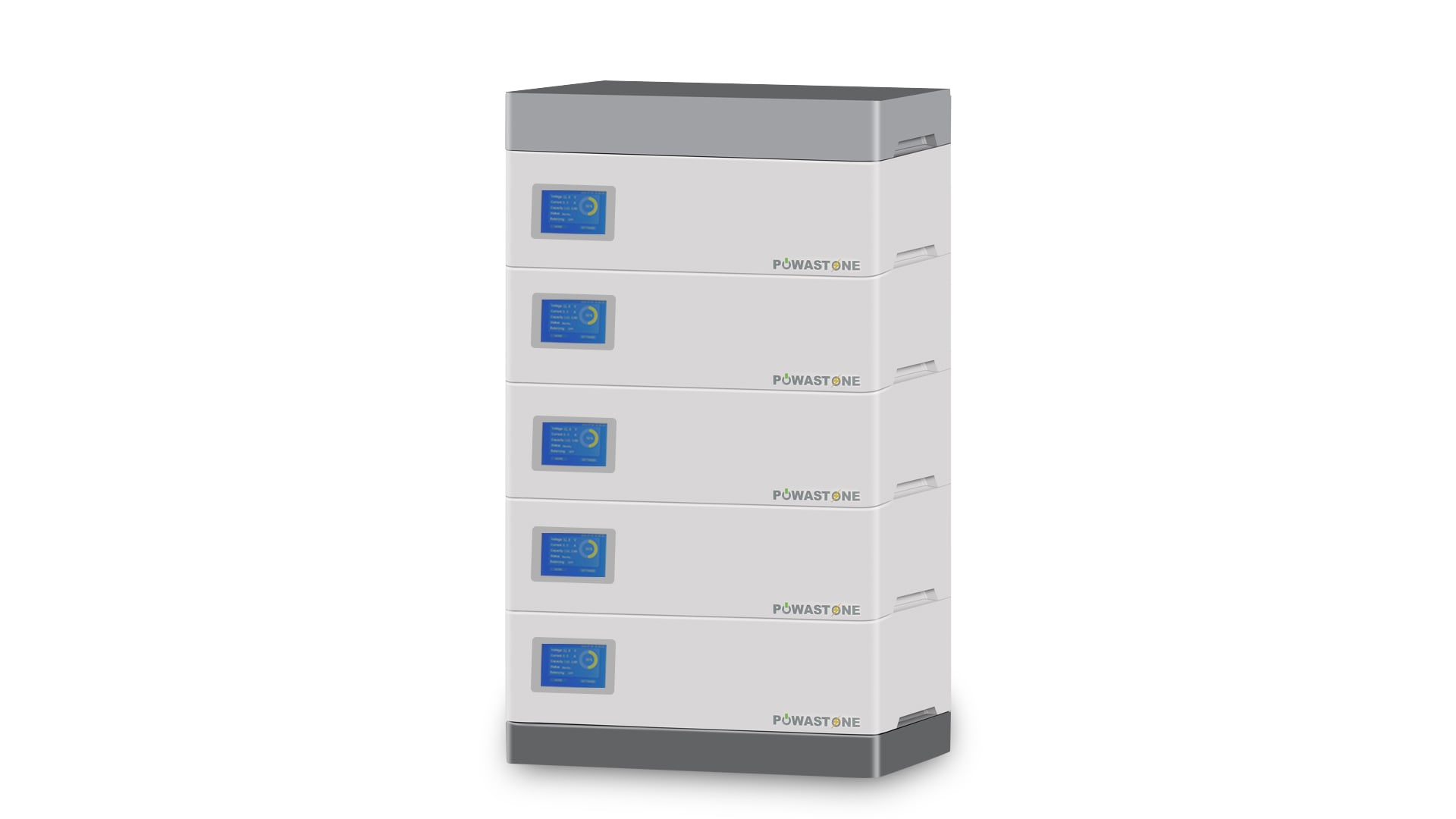

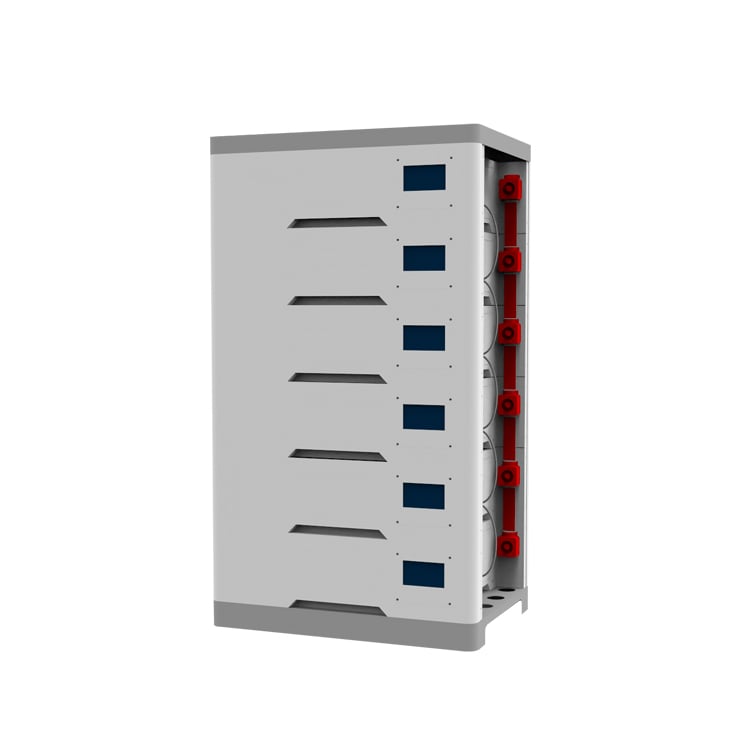

Model

PS-10

PS-15

PS-20

PS25

PS-30

Capacity

200Ah

300Ah

400Ah

500Ah

600Ah

Usable energy

10KWh

15KWh

20KWh

25KWh

30KWh

Module quantity

2

3

4

5

6

Dimension (mm)

640*450*440mm

640*450*610mm

640*450*780mm

640*450*950mm

640*450* 1120mm

Net weight (Kg)

106kg

159kg

212kg

265kg

318kg

Inverter brand

VICTRON, SOL-ARK, GOODWE, DEYE, SCHNEIDER, GROWATT, PYLONTECH, SOFAR etc

Warranty service

10 Years [3]

Main kits include

1 x Top lid & N x Battery module & 1 x Bottom base
