Key Specifications
Advanced Cooling & Thermal Management
· Water-Cooling System: Integrated liquid cooling with pumps and heat exchangers for precise temperature control.
· Operating Temperature: -20°C to 55°C; maintains optimal performance in extreme conditions.
· Efficiency: Reduces thermal runaway risks and extends battery lifespan compared to air-cooled systems.
Safety & Compliancet
· Battery Management System (BMS): Monitors voltage, temperature, and current in real time.
· Protections: Overcharge, over-discharge, short-circuit, and surge protection.
· Certifications: Compliant with UL 9540, IEC 62619, and UN38.3 standards.
Design & Scalability
· Modular Architecture: Easily scales by connecting multiple units in parallel.
· IP Rating: IP55 for dust/water resistance, suitable for indoor/outdoor installation.
· Compact Footprint: Space-efficient design for flexible deployment (include approximate dimensions/weight if available).
Smart Features & Integration
· Remote Monitoring: Cloud-based platform for real-time performance tracking and diagnostics.
· Grid/Off-Grid Compatibility: Seamless integration with solar, wind, and hybrid systems.
· Communication Protocols: CAN, RS485, Ethernet for easy EMS/SCADA integration.
Applications
· Commercial/Industrial: Peak shaving, load balancing, backup power.
· Renewable Integration: Stores excess solar/wind energy for on-demand use.
· Utility-Scale: Grid stabilization and frequency regulation.
Sustainability & Warranty
· Eco-Friendly: 100% recyclable components; reduces carbon footprint.
· Warranty: 10-year limited warranty with guaranteed cycle life.
Cost-Effectiveness
· Low Maintenance: Water-cooling reduces wear, lowering operational costs.
· ROI: High efficiency and long lifespan ensure rapid payback.
Specifications and Parameters
|
No. |
Name |
Parameter |
Note |
|
System parameter |
|||
|
1 |
Rated discharge power |
100kW |
|
|
2 |
Rated charge power |
100kW |
|
|
3 |
Rated energy |
215kWh |
|
|
4 |
Chemistry |
LiFePO4 |
|
|
5 |
Module Layout |
1P48S |
|
|
6 |
Pack layout |
1P240S |
|
|
7 |
Maximum energy conversion efficiency |
91% |
|
|
8 |
DoD |
95% |
|
|
DC side parameter |
|||
|
1 |
Rated voltage |
DC768V |
|
|
2 |
Battery voltage range |
DC600V-876V |
|
|
3 |
Max power |
100kW |
|
|
4 |
Rated current |
140A |
|
|
5 |
Max DC current |
170A |
|
|
AC side parameter |
|||
|
1 |
Rated grid voltage/Allowable grid voltage range |
400V(-10%～+10%） |
|
|
2 |
Rated grid efficiency/Allowable grid voltage efficiency |
50HZ/60HZ |
|
|
3 |
Power factor adjustability |
-0.99～+0，99 |
|
|
Mechanical parameter |
|||
|
1 |
Size (W x D x H) |
1300x1300x2275 |
|
|
2 |
Weight (t) |
≤3 |
|
|
3 |
Mounting method |
Cement foundation |
|
|
4 |
IP level |
IP54 |
|
|
5 |
Power coating color |
RAL 9003 |
|
Huison Electronics continuously provides users with a full rangeof 12V~1500V microgrid,industrial and commercial, Residential,Telecom,UPS and outdoor energy storage products andservice.

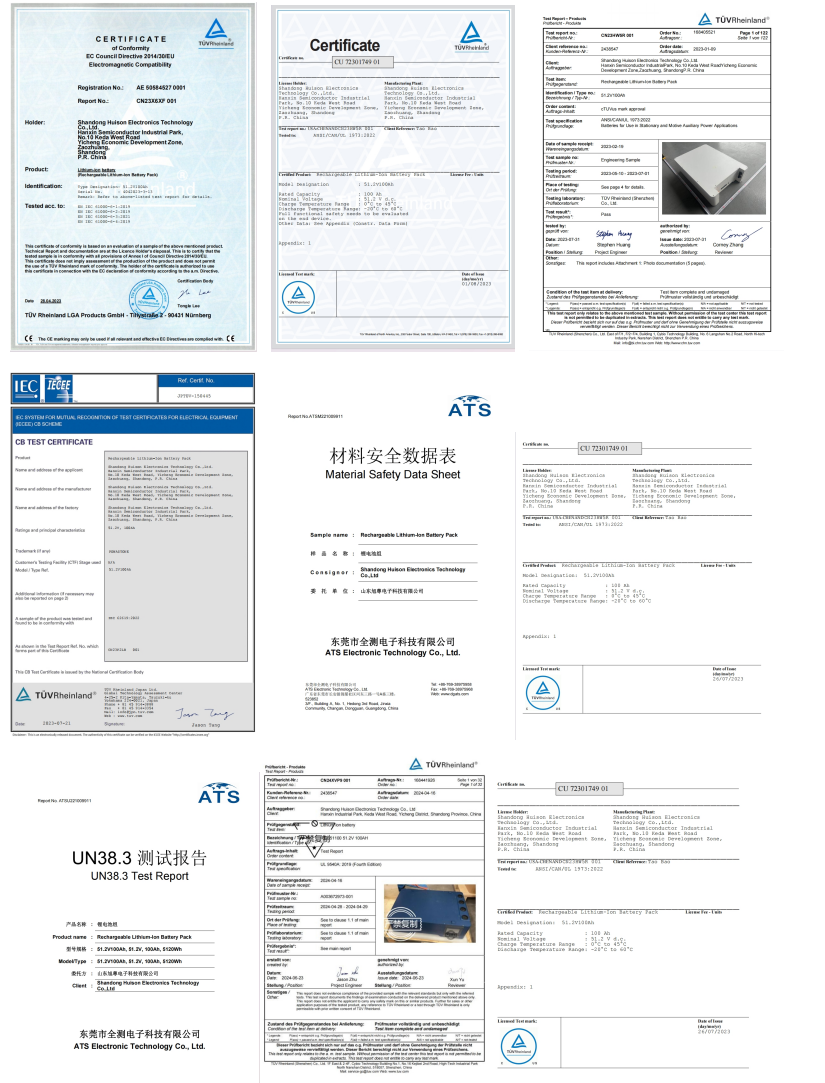

The products have obtained international certificationssuch as UL1973,UL9540, CE,IEC62619,IEC62133,UN38.3,IS090001 etc.
