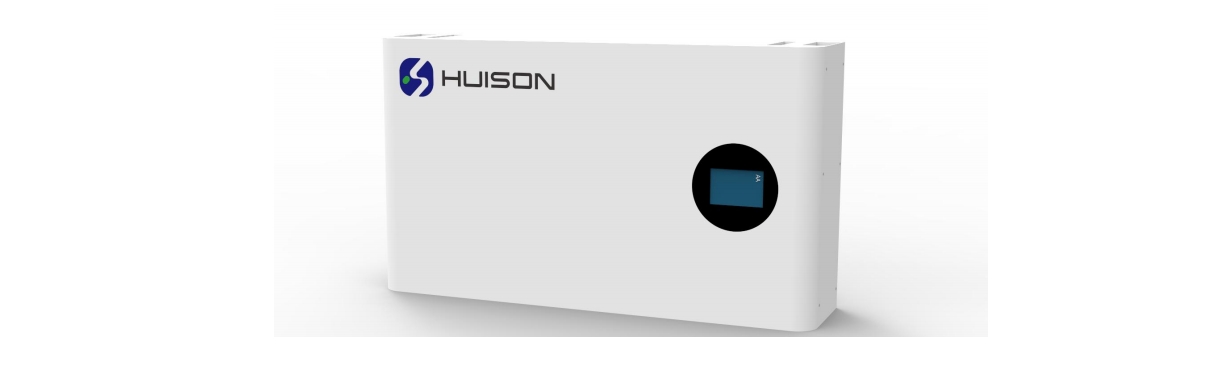

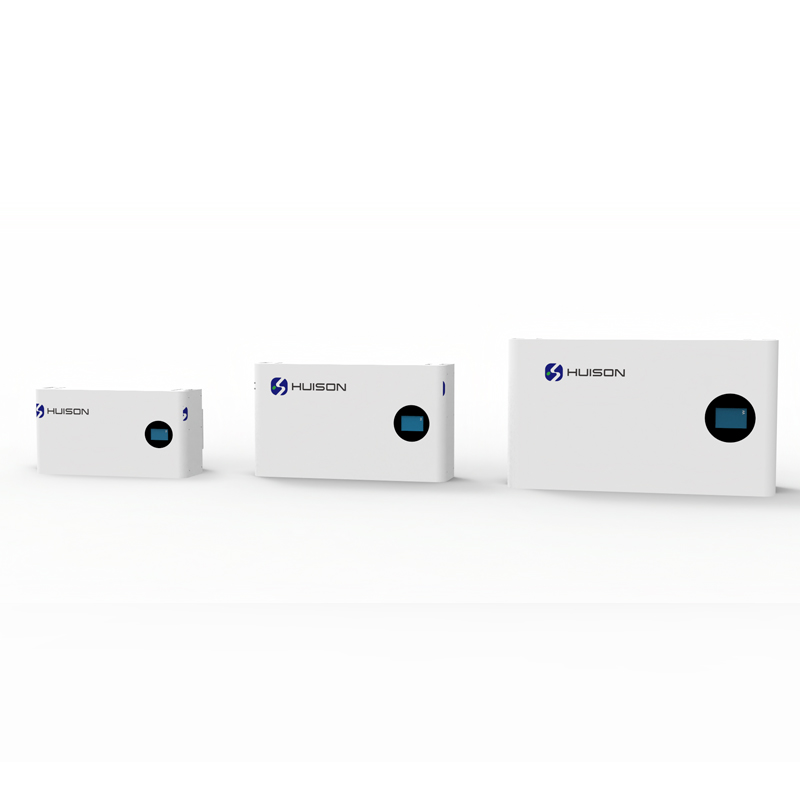

Energy Storage battery 48v 100ah Lifepo4 Wall Mounted Lithium Battery 51.2v 100ah 206Ah 280Ah Solar Battery

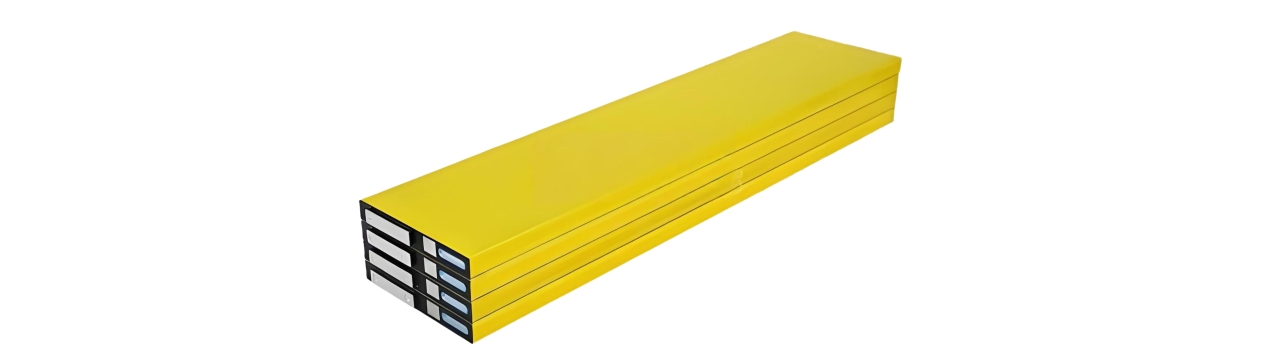

No.

ltem

Standard

Note

1

Normal capacity

125Ah

25℃ Ambient,0.5C Rate

2

Impedance @1KHz

≤0.6mQ

3

Charge temperature

0~60℃

Cell temperature

4

Discharge temperature

-20~60℃

Cell temperature

5

Storage temperature range

-30~35℃

6months/25%~40%SOC

≤85%RH/No condensation

6

Max charge voltage

3.65V

25±2℃ Ambient

7

Standard charge rate

0.5C

25±2℃ Ambient

8

Maximum charge rate

3.0C

25±2℃ Ambient

9

Discharge cut-off volt

2.5V

2.0V

0℃≤T≤60℃ -20℃≤T≤0℃

10

Standard discharge rate

0.5C

25±2℃ Ambient

11

Max continuous discharge

3.0C

25±2℃ Ambient

12

Cycle life @25℃ Ambient

≥2200 Times

1.0C      rate/100%DOD/80%SOH

≥4500 Times

0.5C   rate   /100%DOD/70%SOH

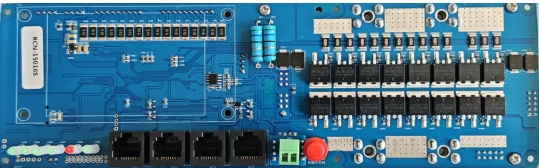

  RS485Communicatin
  CANBusCommunication
  LED Monitor operation-3.5/4.3 inch touch screen
  Device status light indication
  ON/OFF switch &RPSD function
  Auto-assign DIP (address)
  Auto-protocol matching

ltem

Parameters

Note

Cell string range

16S

Voltage Protection

Abnormal high voltage

3900mV

Adjustable

Over-charge voltage

3750mV

Adjustable

Over-discharge voltage

2500mV

Adjustable

Balance open voltage

3500mV

Adjustable

Pre-charge open voltage

2400mV

Adjustable

Forbid charge @low voltage

2000mV

Adjustable

Current Protection

Over-current protection-Charge

150A or 20mV

Adjustable

Over-current protection-discharge(1)

150A or 20mV

Adjustable

Over-current protection-discharge(2)

30mV

Adjustable

Short-circuit protection

50mV

Adjustable

Current limitation protection

150A

Adjustable

Temperature Protection

Charge-High temperature

60℃

Adjustable

Charge-Low temperature

0℃

Adjustable

Discharge-High temperature

65℃

Adjustable

Discharge-Low temperature

-20℃

Adjustable

Temperature Protection

MOSFET-High temperature

80℃

Adjustable

MOSFET-Low temperature

-20℃

Adjustable

ELECTRICAL PERFORMANCE

Rated voltage

48Vdc

Voltage range

37.5~54Vdc

Charge curent

≤100A

Discharge current

≤100A

Peak/Max current

1.5C @10s

Communication

RS485/CANBus

Cycle times (Life)

2200+Times @80%DOD

Extended quantity

Up to 32pcs (192KWh)

ENVIRONMENT &OTHERS

IP level

IP50(Indoor scenario)

Charge temp.

0～50℃

Discharge temp.

-20~60℃

Storage temperature

-20～45℃

Certificate

Cell:UL1973,UL1642,IEC62619,IEC62133,UN38.3,etc CE,MSDS,UN38.3

Dimension &Weight

660*153*380/50±1 Kg

Compatible inverter

DEYE,SOFAR,GOODWE,SELECTRONICS,PYLONTECH ETC

Warranty

5 years

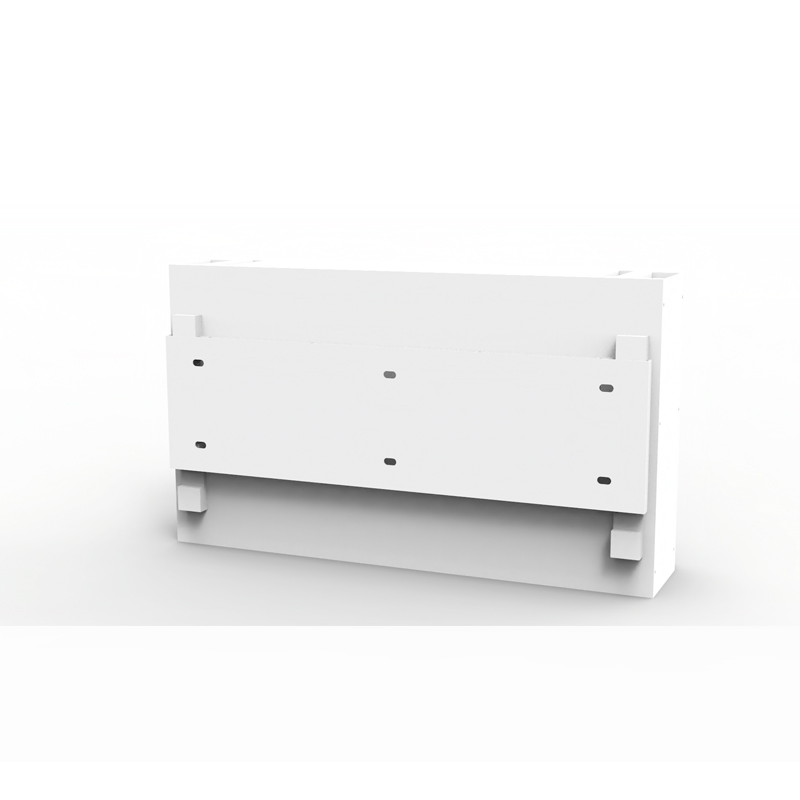

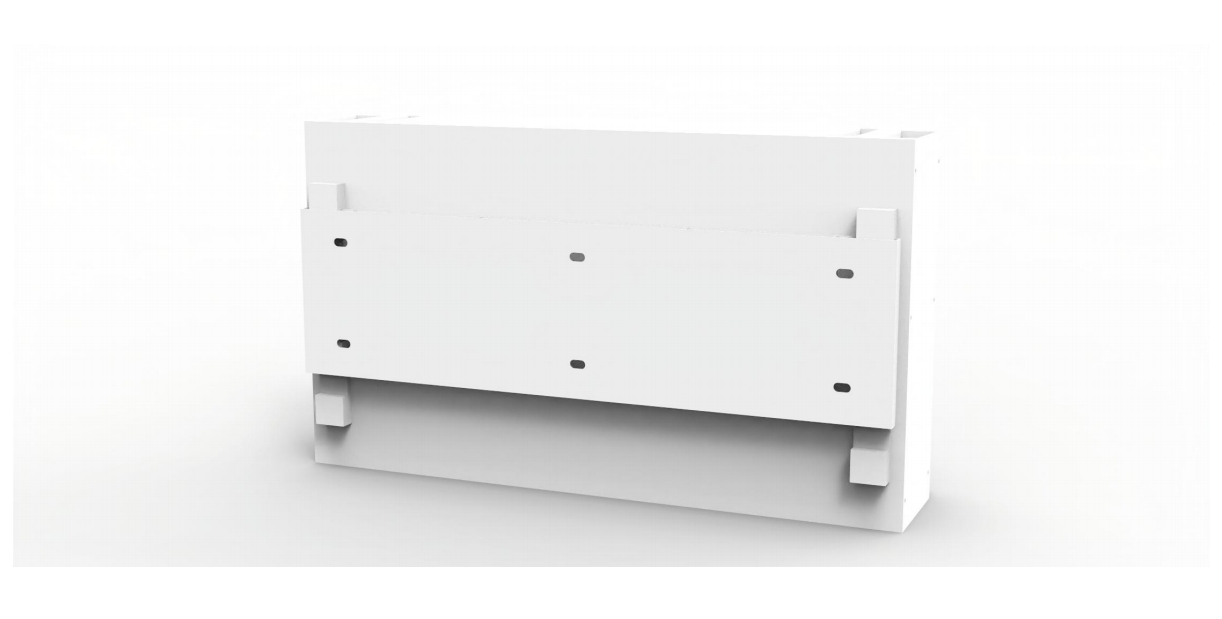

Model

HS-KWH-KIT

Size

648*180mm

Bolt size

M8

Hole center distance

110mm
