Shandong Huison Stack 15KWH 20KWH 50 kwh Lifepo4 Home Energy Storage Battery Smart BMS High Voltage Lifepo4 Stackable Lithium Ion System

No.

Item

Standard

Note

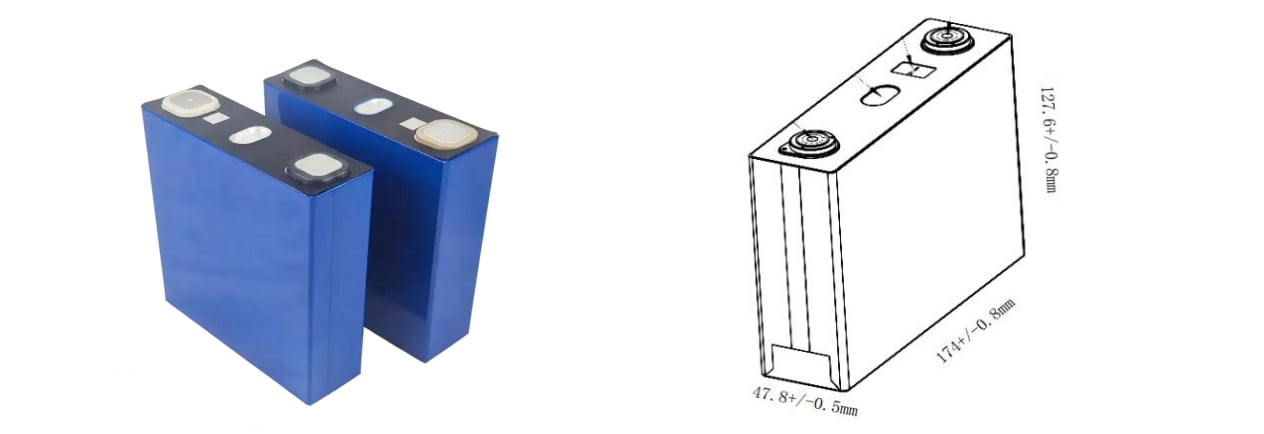

1

Normal capacity

100Ah

25’CAmbient, 0.5C Rate

2

Impedance @1KHz

≤0.40mΩ

3

Charge temperature

0~60’C

Cell temperature

4

Discharge temperature

-20~60’C

Cell temperature

5

Storage temperature range

-30~35’C

6months / 25%~40%SOC   ≤85%RH / No condensation

6

Max charge voltage

3.65V

25±2’C Ambient

7

Standard charge rate

0.5C

25±2’C Ambient

8

Maximum charge rate

1.0C

25±2’C Ambient

9

Discharge cut-off volt

2.5V 2.0V

0’C≤ T ≤60’C  -20’C≤ T ≤0’C

10

Standard discharge rate

0.5C

25±2’C Ambient

11

Max continuous discharge

1.0C

25±2’C Ambient

12

Cycle life @25’C Ambient

≥3000 Times

1.0C rate / 100%DOD / 80%SOH

≥6000 Times

0.5C rate / 100%DOD / 70%SOH

Item

Parameters

Note

Cell string range

16

Adjustable

Rated capacity

100Ah

Adjustable

Current range

0-300A

Adjustable

Temperature sensor quantity

31

Adjustable

Parallel parameter of cells

8+6,   7+6

Adjustable

Over-charge voltage

3.65V

Adjustable

Recovery voltage

3.4V

Adjustable

Pack over-discharge voltage

58.4V

Adjustable

Delay time

1s

Adjustable

Over-charge voltage

2.8V

Adjustable

Recovery voltage

3.0V

Adjustable

Pack over-discharge voltage

44.8V

Adjustable

Delay time

10s

Adjustable

1st level discharge over current

120A

Adjustable

2nd level discharge over current

150A

Adjustable

Charge over current limiting

30A

Adjustable

Short circuit current

400A

Adjustable

Temperature protection range

-5℃~+85℃

Adjustable

Voltage difference alarm

3.5V

Adjustable

Isolation alarm

Insulation resistance<500 Ω/V

Item

Parameters

Value

Adjustable

Status monitoring

Total voltage

0

No

Charge/discharge current

0

No

SOC

0

No

Auto calibration after a full cycle

Cell voltage

0

No

Cell temperature

-50℃

No

System(MOS) temperature

-50℃

No

Switch control

0xD0

No

Alarm

0X00

No

Cycles

0

Yes

Output voltage

0

No

Balance

Open voltage

3.3V

Yes

Open voltage differences

20mV

No

Current

40mV

No

Pre charge

Time

2S

No

4s after turn on, precharge for 3 times, interval   time   2 minutes

SOC calibration

Cell over charge voltage

3.65V

Yes

Set to 100%

Cell discharge recover voltage

3.0V

Yes

Set to 0%

Sleep /OFF

SOC>20% standby

15 days

No

SOC<20%,voltage higher than cell over discharge voltage

48 hours

No

Voltage lower than cell over discharge voltage

30min

No

Hold the switch

3S

No

Turn off the system

Wake up/Turn on

Press the switch

1S

No

Switch to grid

Load detection

5V

No

When battery is full

charged by grid, if grid is    off,and load voltage is <5V

Load detection

60%FS

Yes

Charge detection

1V

Yes

Rental

Internal timestamp

Yes

Starting time

Yes

Tenancy

3000days

Yes

Registration

Phone number

Yes

OTA

Hardware and software version

Rs232/ttl, PC APP,WIFI

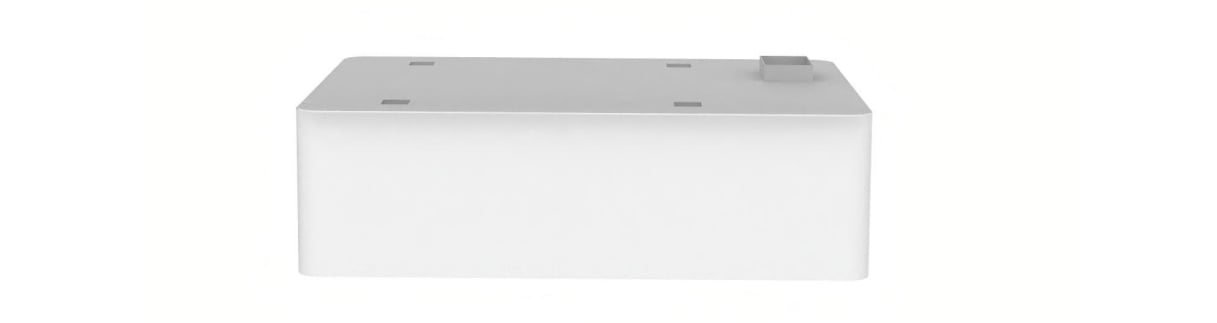

ELECTRICAL PERFORMANCE

Rated voltage

51.2V

Voltage range

40V - 57.6V

Charge current

50A

Discharge current

100A

Peak/Max current

1.5C @10s

Communication

CAN/RS485/RS232/TTL/WIFI

Cycle times (Life)

6000+Times (≥10 years) @80%DOD

Extended quantity

Recommend max 8 modules per rack

ENVIRONMENT & OTHERS

IP level

50 Indoor

Charge temp.

0～55℃

Discharge temp.

-20～55℃

Storage temperature

-20 ~ 45℃

Certificate

Cell: UL1973, UL1642, IEC62619, IEC62133, UN38.3, etc Module:IEC62619 pending/UN38.3/CE/RoHS

Dimension

600*400* 160mm

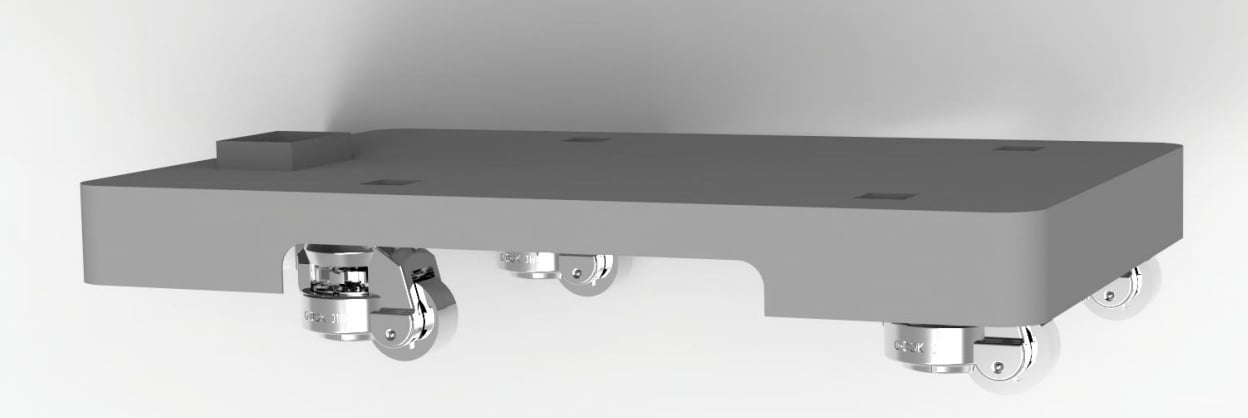

Bottom base mechanical performance

Size

600x400x60mm Excluding casters

Weight

7.5kg

load bearing capacity

1 ton, max 10 batteries

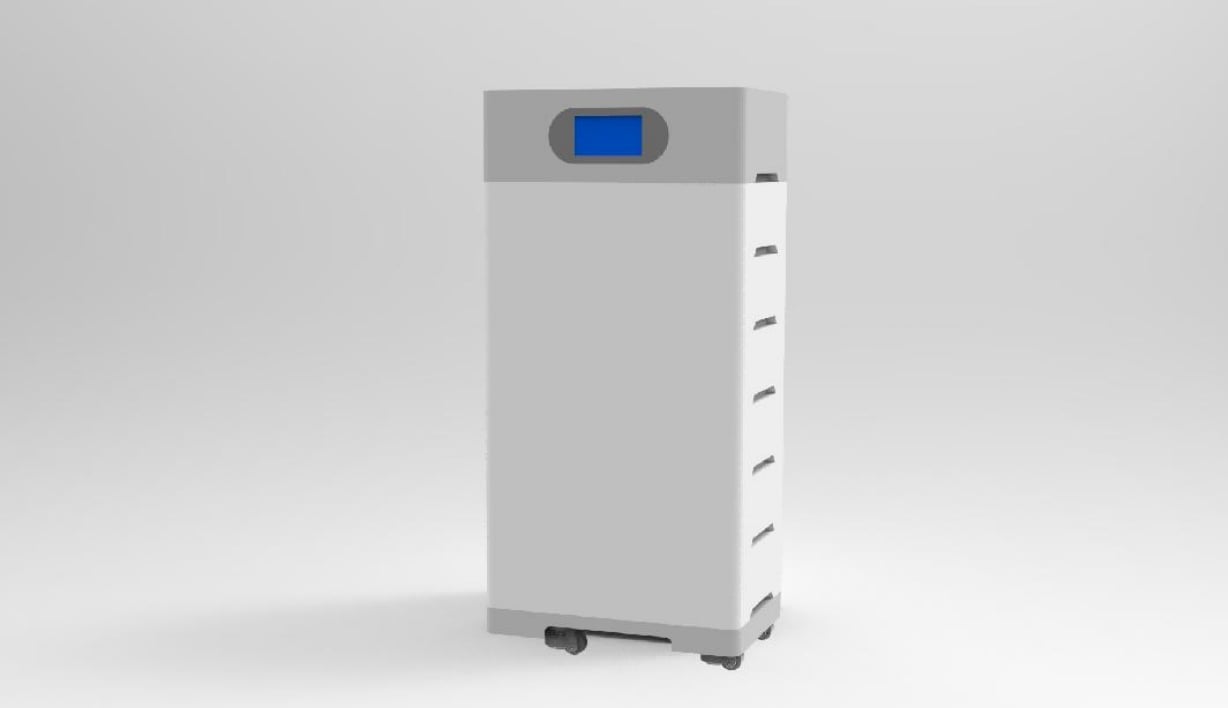

Model

PS15

PS-20

PS30

PS-40

PS-50

Voltage(V)

153.6

204.8

307.2

409.6

512

Capacity(Ah)

100

100

100

100

100

Usable

energy(kWh)

15

20

30

40

50

Module quantity

3

4

6

8

10

Dimension (mm)

600*400*790

600*400*950

600*400*1270

600*400*1590

600*400*1910

Net weight (Kg)

155

200

290

380

470

Inverter brand

GOODWE, DEYE, SCHNEIDER, GROWATT, PYLONTECH, SOFAR etc

Warranty service

10 Years [3]

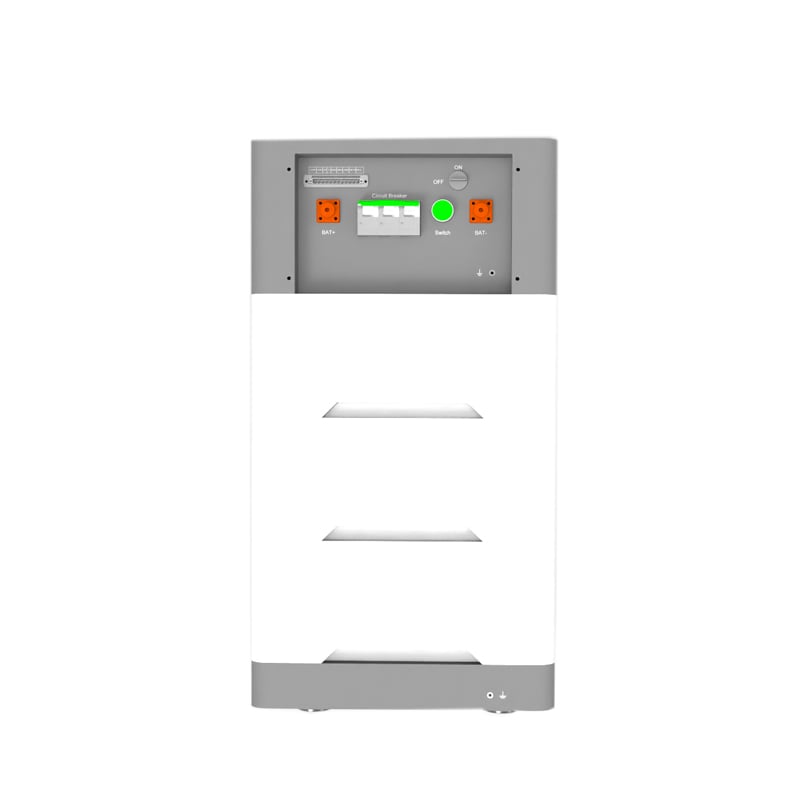

Main kits include

1 x Top lid & n(≥3) x Battery module & 1 x HV box
