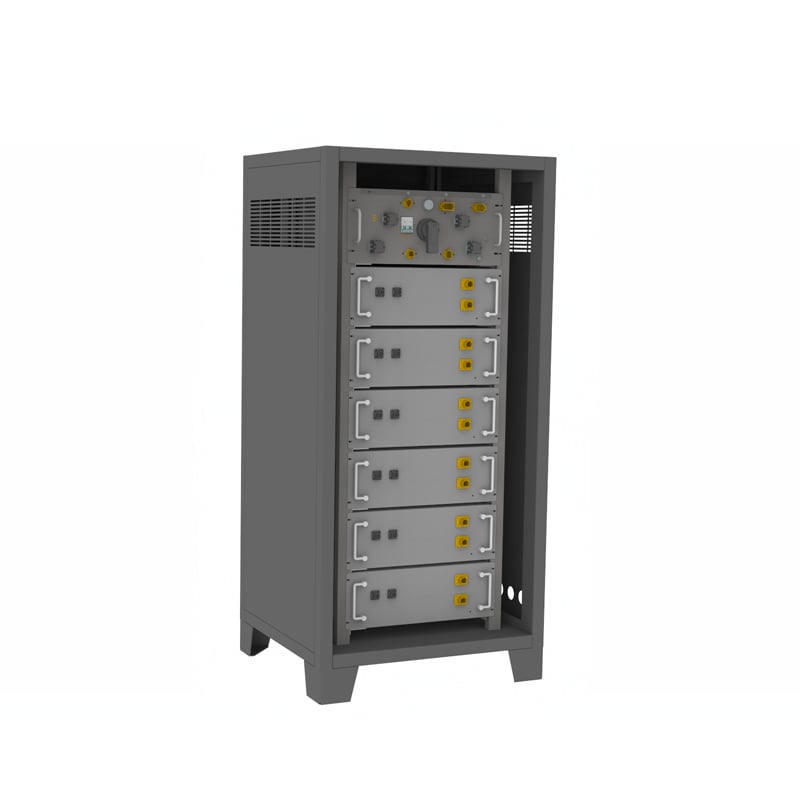

Shandong Huison 15Kwh 20Kwh 30Kwh High Voltage Large Capacity Home Energy Storage Batteries 51.2V 100Ah 206Ah Rack Mounted Lithium Battery

No.

Item

Standard

Note

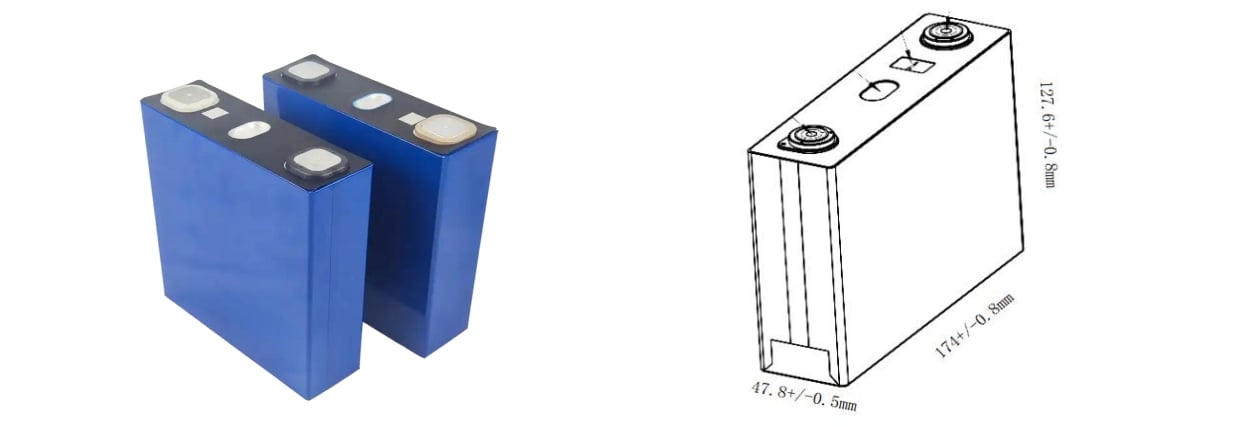

1

Normal capacity

100Ah

25℃ Ambient, 0.5C Rate

2

Impedance @1KHz

≤0.40mΩ

3

Charge temperature

0~60℃

Cell temperature

4

Discharge temperature

-20~60℃

Cell temperature

5

Storage temperature range

-30~35℃

6months / 25%~40%SOC   ≤85%RH / No condensation

6

Max charge voltage

3.65V

25±2℃ Ambient

7

Standard charge rate

0.5C

25±2℃ Ambient

8

Maximum charge rate

1.0C

25±2℃ Ambient

9

Discharge cut-off volt

2.5V 2.0V

0℃≤ T ≤60℃ -20℃≤ T ≤0℃

10

Standard discharge rate

0.5C

25±2℃ Ambient

11

Max continuous discharge

1.0C

25±2℃ Ambient

12

Cycle life @25℃ Ambient

>=3000 Times

1.0C rate / 100%DOD / 80%SOH

>=6000 Times

0.5C rate / 100%DOD / 70%SOH

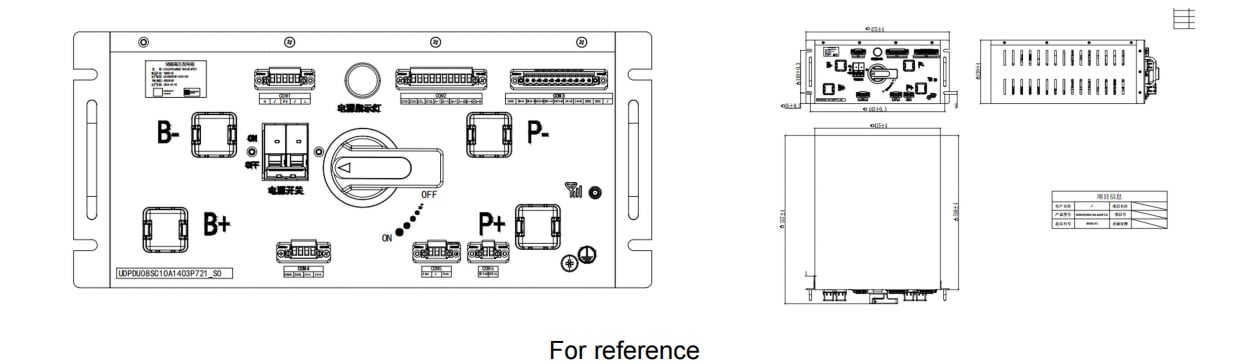

Item

Parameters

Working temperature

40℃~85℃

Storage temperature

40℃~ 105℃

Working humidity

5~95%

High voltage detection accuracy

±0.5%

Current detection accuracy

±0.5%FSR

Insulation detection accuracy

10K or 10%

SOC estimation accuracy

≤5%

Charging port TEMP.detection accuracy

±1℃(10KNTC)

Support protocols and standards

CCP 、UDS 、OBD-ii 、GB/T32960

System power supply

Voltage range 6~36V (typical values 12V,24V)

Power

consumption

working

200mA@12V

Sleep/standby

3mA@12V

Poweroff

100uA@ 12V

Comm.unit

CAN

2-channel,debugging CAN(non isolated),external CAN(isolated)

RS485

2-channel,display485(non isolated),external485(isolated)

isoSPI

Support

Wireless

Standard model,4Gmodel,WIFI+Bluetooth two in one model

Acquisition unit

High voltage detection

P720:6 channels; P721 4 channels

Current detection

Shunt,support(measurement range-100a~+100a; measurement

error≤±100mA; measurement cycle≤250ms;)

Insulation test

Support(,measurement accuracy±10%

Temperature detection

5channels measurement accuracy±1℃

Switch signal detection

2-channel,valid when connected to GND

Level signal detection

2-channel,connected to high level effective (9~36vdc)

Wake up model detection

4channel ，KL15/OBC/DCC/RTC

Execution unit

High side switch

8-channels 2A

Dry contact output

2-channel, isolated,0. 1A/channel

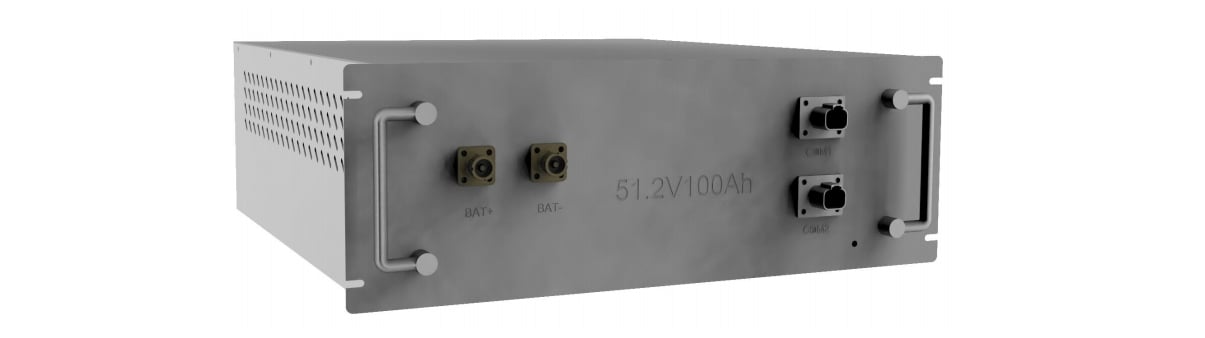

ELECTRICAL PERFORMANCE

Rated voltage

51.2V

Voltage range

40V - 57.6V

Charge current

50A

Discharge current

100A

Peak/Max current

1.5C @10s 25℃

Communication

CAN/RS485/RS232

Cycle times (Life)

6000+ Times (≥10 years) @80%DOD

Extended quantity

10 modules

ENVIRONMENT & OTHERS

IP level

50 Indoor

Charge temp.

0～55  ℃

Discharge temp.

-20～55℃

Storage temperature

-20 ~ 45℃

Certificate

Cell: UL1973, UL1642, IEC62619, IEC62133, UN38.3, etc Module:IEC62619 pending/UN38.3/CE/RoHS

Dimension & Weight

442*500* 165mm（Excluding the bracket）

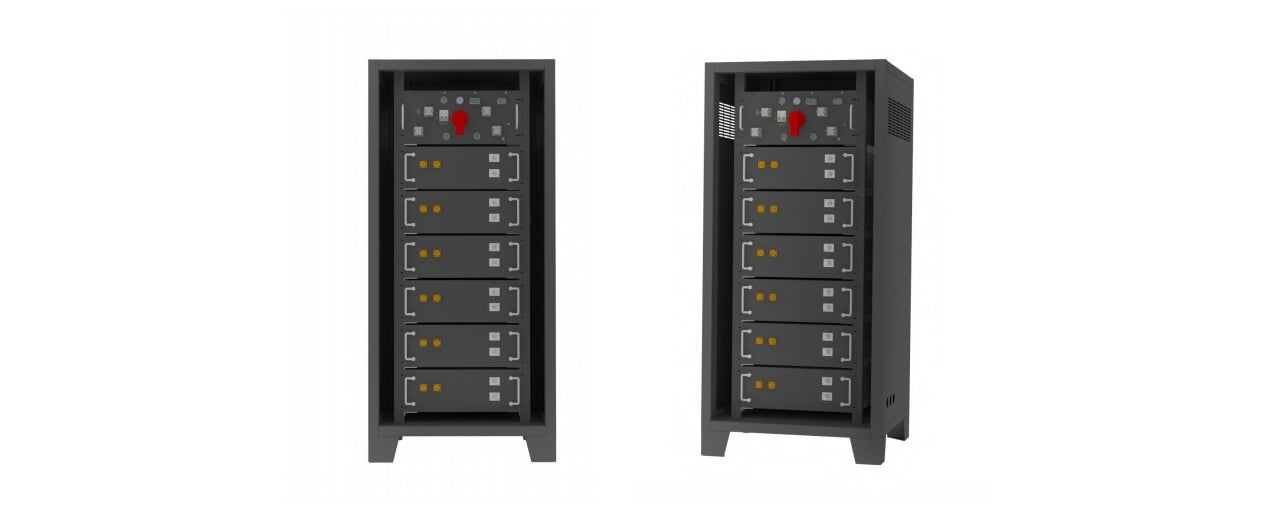

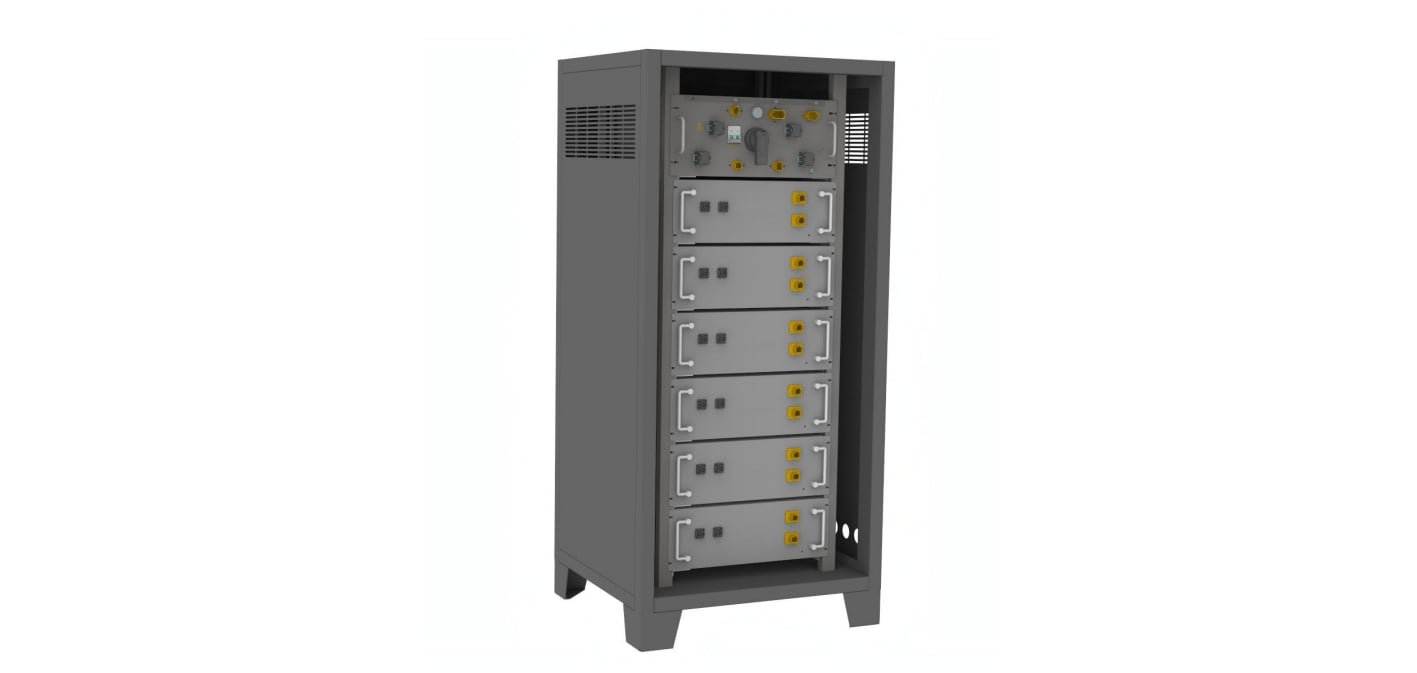

Model

XZ-15

XZ-20

XZ-30

XZ-40

XZ-50

Voltage (V)

153.6

204.8

307.2

409.6

512

Capacity (Ah)

100

100

100

100

100

Usable energy (KWh)

15

20

30

40

50

Modules

3

4

6

8

10

Max charge current (A)

100

Max discharge current (A)

100

Size (mm)

720*720*1040

720*720*1210

720*720*1550

720*720*1890

720*720*2230

Net weight (Kg)

260

310

400

490

580

Communication

RS485 / CANBUS

IP level

IP 50
