For Commercial and Industrial Energy Storage
PRODUCT SPECIFICATION

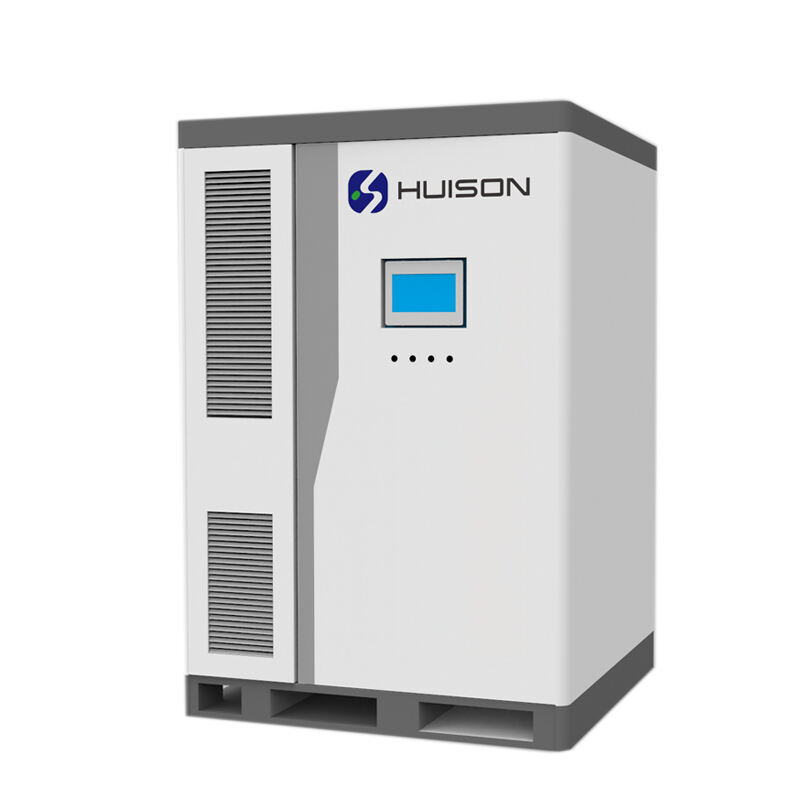

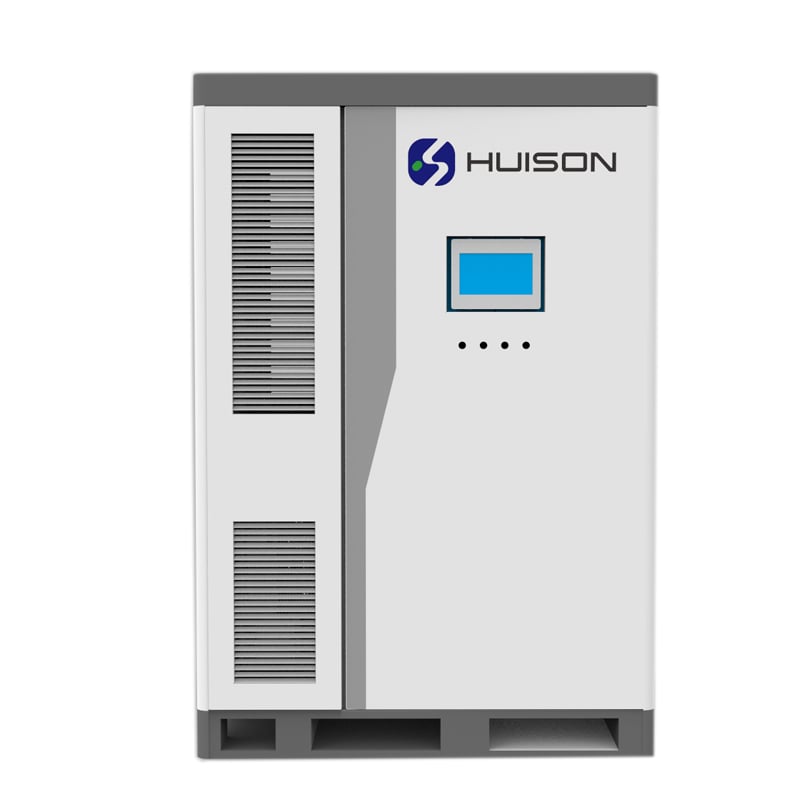

Product Name:C&I Battery Energy Storage System
Product Model:Liquid cooling BESS Series
Product Type:XZ-C100K215kWh / XZ-C100K215kWh233kWh
Specification Version:V3.0

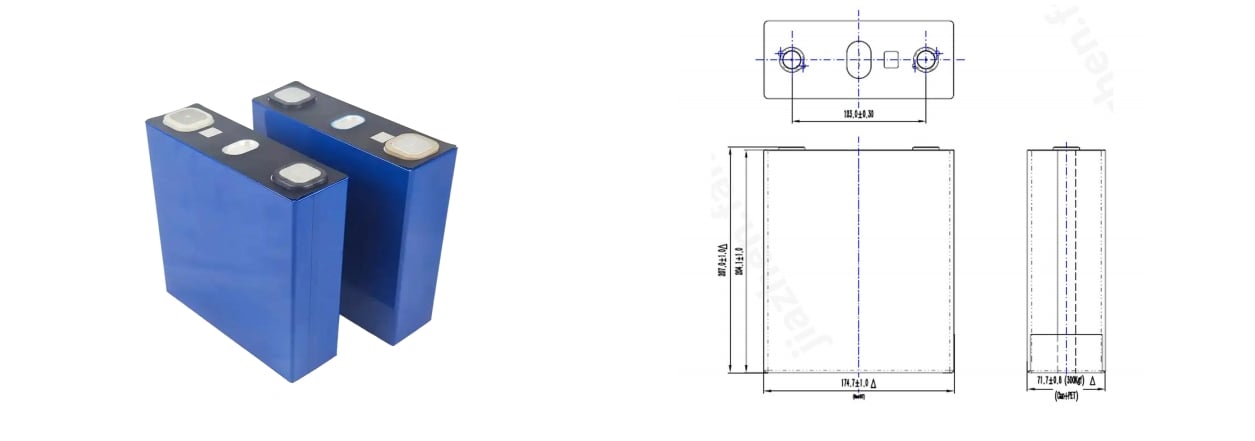

Part 1 § Battery Cell Specification
No. |
Item |
Standard |
Note |
1 |
Normal capacity |
280Ah |
25℃ Ambient, 0.5C Rate |
2 |
Impedance @1KHz |
≤0.21mΩ |
AC-IR |
3 |
Charge temperature |
0~60℃ |
|
4 |
Discharge temperature |
-20~60℃ |
|
5 |
Storage temperature range |
-30~35℃ |
6 months / 25%~40%SOC ≤85%RH / No condensation |
6 |
Max charge voltage |
3.65V |
25±2℃ Ambient |
7 |
Standard charge rate |
0.5C |
25±2℃ Ambient |
8 |
Maximum charge rate |
1.0C |
25±2℃ Ambient |
9 |
Discharge cut-off volt |
2.5V 2.0V |
0℃ ≤ T ≤60℃ -20℃ ≤ T ≤0℃ |
10 |
Standard discharge rate |
0.5C |
25±2℃ Ambient |
11 |
Max continuous discharge |
1.0C |
25±2℃ Ambient |
12 |
Cycle life @25℃ Ambient |
>=6000 Times |
0.5C rate / 100%DOD / 80%SOH |
13 |
Weight |
≤5.34±0/ 1kg |

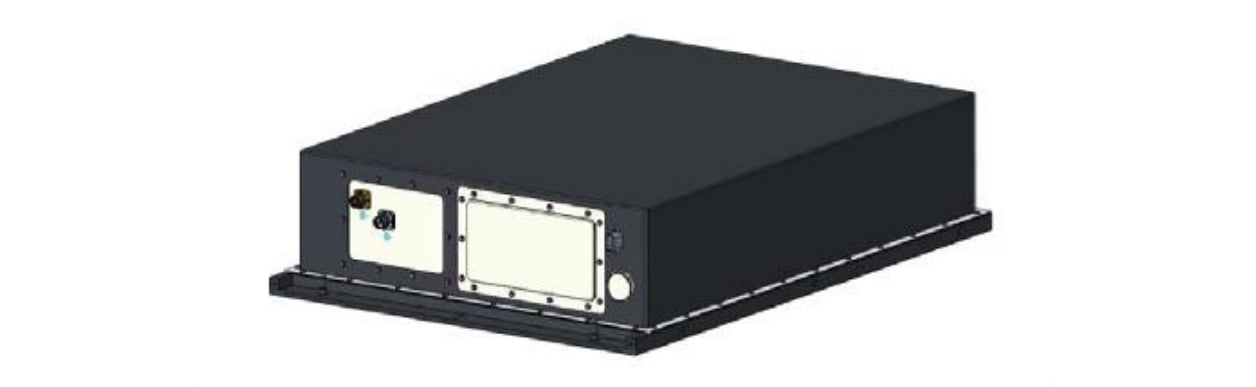

Part 2 § Battery Pack Specification
No. |
Rated Energy |
43kWh |
46.6kWh |
1 |
Normal capacity |
280Ah |
280Ah |
2 |
Layout |
48S1P |
52S1P |
3 |
Rated voltage |
153.6V |
166.4V |
4 |
Rated Power |
0.5P |
0.5P |
5 |
Battery voltage range |
120V～175.2V |
130V～189.8V |
6 |
Working voltage range |
132V-175.2V |
|
7 |
Working Temperature range |
-20℃~+55℃ |
|
8 |
BMU |
Built in passive balance |
|
9 |
Size |
1080±3.0mm * 770±2.0mm * 245±1.0mm |
|
10 |
IP level |
IP67 |
|
|
Communication |
CANBUS 2.0 |
|

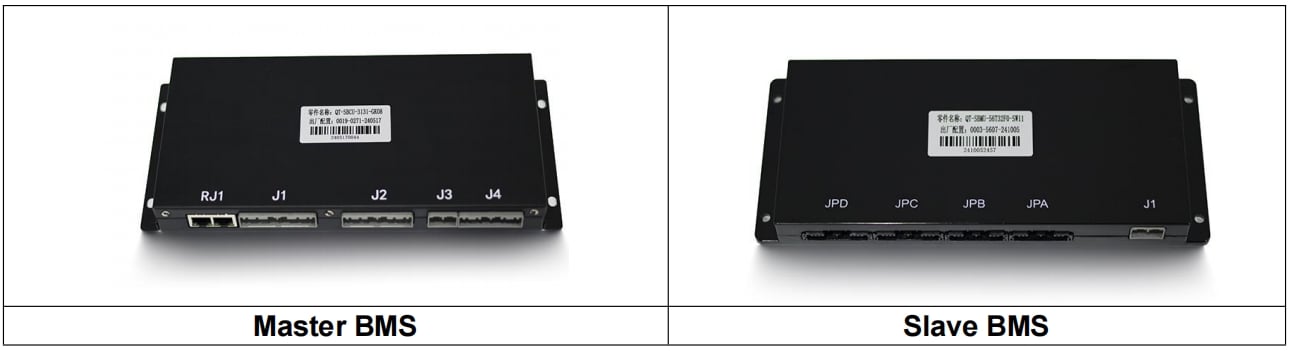

Part 3 § BMS Specification
Item |
Parameters |
Note |
BMS parameter | ||
Cell voltage monitoring range |
0-5Vdc |
|
Cluster voltage detection accuracy |
±3mV |
|
Insulation resistance detection range |
0~ 10M Ω |
|
Insulation resistance detection accuracy |
±10% |
|
Power reduction control function |
Yes |
|
Cell voltage sampling accuracy |
±5mV |
|
Cell temperature sampling range |
-40℃~125℃ |
|
Cell temperature sampling accuracy |
±1℃（@-25℃~65℃) |
|
Cell voltage disconnection detection function |
Yes |
|
Cell temperature disconnection detection function |
Yes |
|
Balance |
Passive balance |
|
Historical records |
≥90 days |
|
Number of record |
10000 |
|
EMC | ||
Electrostatic discharge immunity test |
Severe grade 3 |
Passed |
Electric Fast Transient/Burst-immunity Test |
Severe grade 3 |
Passed |
Surge immunity test |
Severe grade 3 |
Passed |
Power frequency magnetic field immunity test |
Severe grade 3 |
Passed |
Damped oscillatory wave immunity test |
Severe grade 3 |
Passed |

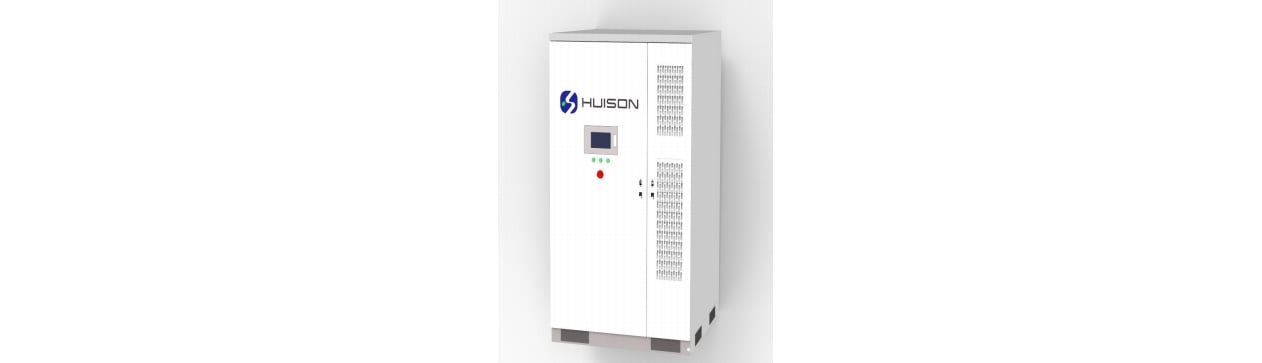

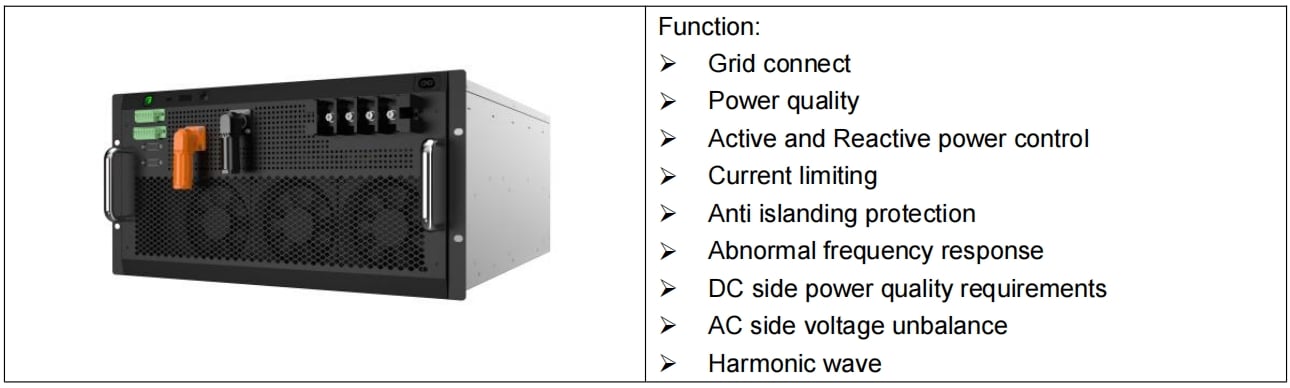

Part 4 § PCS Specification
Basic parameter | |
Rated voltage |
400V(-10%~ 10%)Vac |
Rated current |
167A |
Grid frequency |
50/60Hz |
THID |
≤ 13% (Rated Power) |
Power factor |
-0.99~+0.99 |
DC side parameter | |
DC Power |
100kW |
Max DC current |
170A |
DC working voltage range |
650~950Vdc |
DC full load voltage range |
680~950Vdc |
| Stabilized voltage precision | ≤2% |
Stabilized current precision |
≤5% |
System parameter | |
Charge/discharge switch time |
<100ms |
IP level |
IP20 |
Noise |
<75dB((Pack) |
Cooling |
Forced fan |
Working Environment |
-30℃~55℃ |

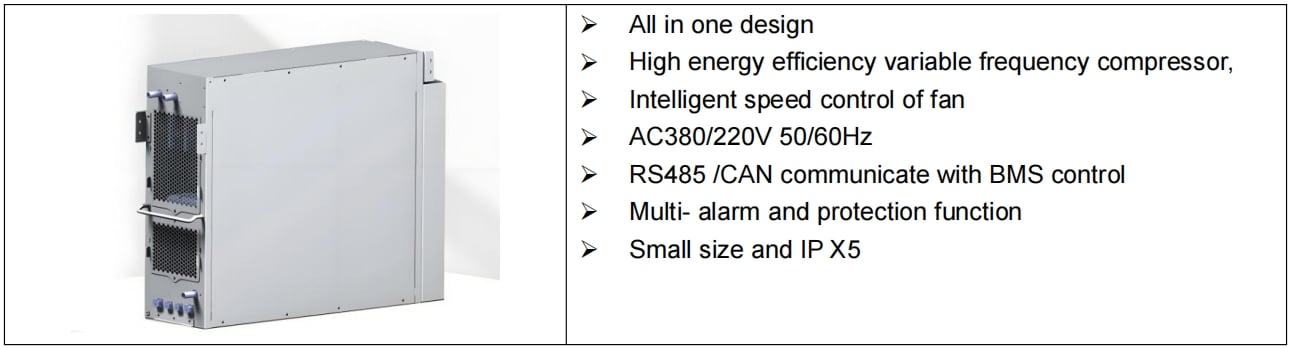

Part 5 § Water Cooling System
Item |
Parameter |
Working environment temperature |
-30℃~55℃ |
UP level |
IPX5 |
Coolant |
Ethylene glycol (CH2OH)2 |
Refrigerating capacity |
5kW |
Heating capacity |
3Kw |
Power supply range |
220V 50/60Hz |
Communication |
CAN2.0 or RS485 |
Sealing of refrigeration system |
Refrigerant leakage rate < 3g/year |
Noise |
<78dB |

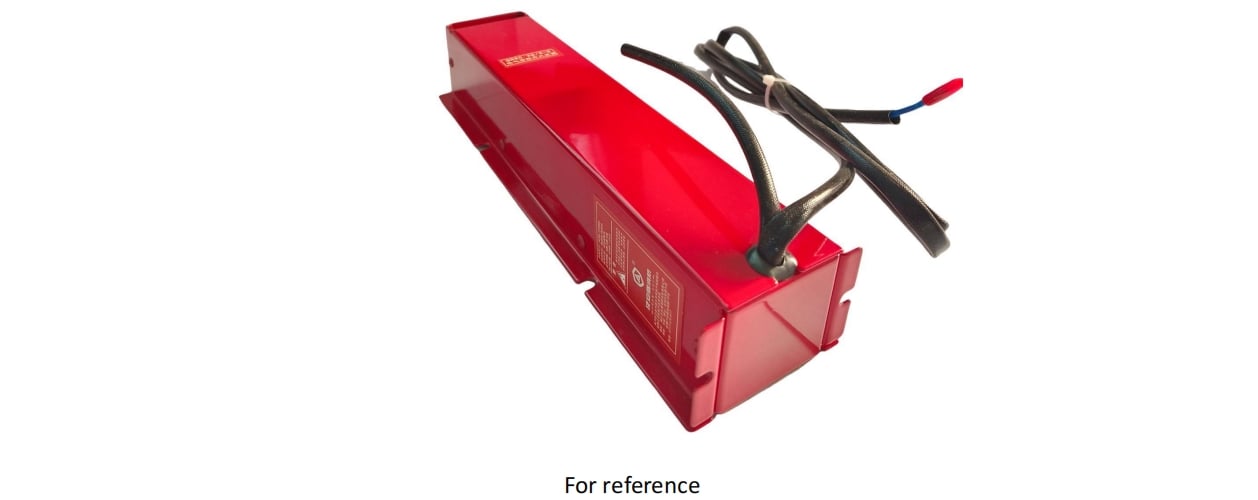

Part 6 § Fire Supression System
Item |
Parameter |
Model |
QRR0.3GW/S |
Working temperature range |
-50℃-+90℃ |
Spay nozzle temperature |
≤ 180℃ |
Surface temperature |
≤ 180℃ |
Discharge time |
10s |
Fire extinguishing concentration |
100g/m3 |
Valid |
10 years |
Weight |
1.3kg |
Name and content of oxidant |
Strontium Nitrate :45%~55% Potassium nitrate:10%±2% |
Part 7 § System Specification
No. |
Item |
215kWh |
233kWh |
System parameter | |||
1 |
Rated discharge power |
100kW |
|
2 |
Rated charge power |
100kW |
|
3 |
Rated energy |
215kWh |
233kWh |
4 |
Battery chemistry |
LiFePo4 280Ah |
|
5 |
Rack layout |
1P240S |
1P260S |
6 |
Max energy efficiency |
91% |
|
7 |
DoD |
95% 25℃ |
|
DC side parameter | |||
1 |
Rated voltage |
DC 768V |
DC 832V |
2 |
Voltage range |
DC 660V-876V |
DC 715V-949V |
3 |
Rated power |
100kW |
|
4 |
Rated current |
152A |
|
5 |
Max DC current |
170A |
|
AC side parameter | |||
1 |
Rated grid voltage |
400V (-10%~+10%) 3P4W |
|
2 |
Rated grid efficiency |
50Hz/60Hz |
|
3 |
Power factor |
-0.99 ~ +0.99 |
|
Cabinet parameter | |||
1 |
Dimension (WxDxH) |
1300 x 1300 x 2275mm |
|
2 |
Weight |
≤ 3t |
|
3 |
IP level |
IP54 |
|
4 |
Thermal management |
Liquid cooling |
|
5 |
Communication |
Modbus RTU/CAN2.0/Modbus TCP |
|
Part 8 § Appendix Component list
No. |
Name |
Part No. |
1 |
Battery |
Cell:280A |
2 |
EMS |
I2000A |
3 |
BMS |
Slave BMS：QT-SBMU-56T32F0 |
4 |
Master BMS:QT-SBCU-3131 |
|
5 |
High voltage box |
QT-HBOX-1000V250A |
6 |
PCS |
EPCS150-AM |
7 |
Water cooling system |
BRA-S-TMS-CN-220AN-C5H3 |
8 |
Fire suppression system |
QRR0.3GW/S aerosol |
9 |
Grid switch |
EZSS250N4250 Schneider |
10 |
Circuit breaker |
EZ7 Series |
11 |
SPD |
PRS40r3P+N |
12 |
Gauge |
ADL400-F 0.5S |
