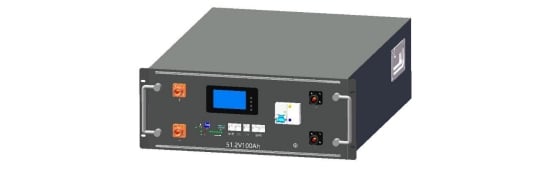

Shandong Huison 51.2v 100ah Lithium Ion Battery 5kwh 48v 100ah Solar Lifepo4 Battery 51.2v 100ah 206ah 280ah 314ah Server Rack Mount Lifepo4 Battery
- Overview
- Recommended Products
For Resident Energy Storage - Rack Mounted Low-volt Series
PRODUCT SPECIFICATION

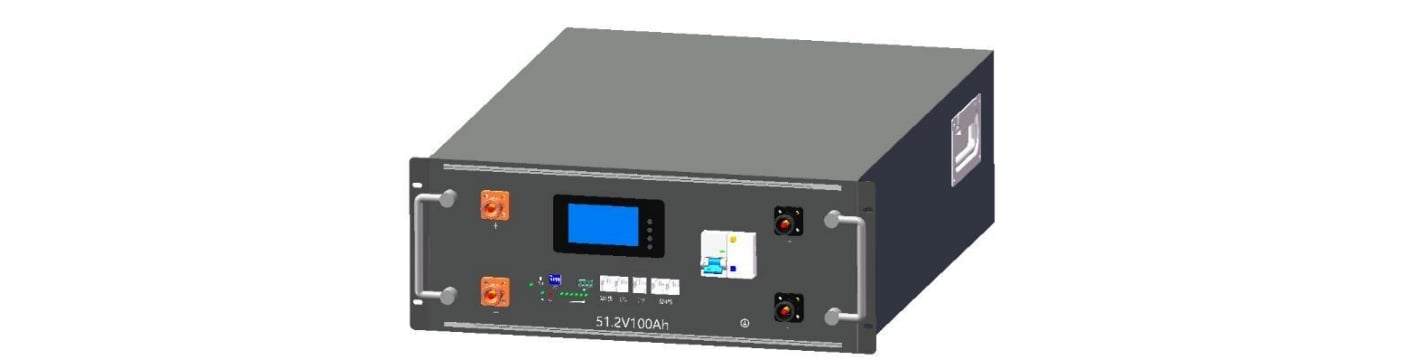

Product Name:Battery Energy Storage System
Product Model:Rack-mounted Low-voltage Series
Specification Version:V3.0
Battery Module Specification
ELECTRICAL PERFORMANCE | |
Rated voltage |
51.2Vdc |
Voltage range |
40.0~57.6Vdc |
Charge current |
≤ 100C |
Discharge current |
≤ 150C |
Peak/Max current |
1.5C @10s |
Communication |
RS485 / CANBus |
Cycle times (Life) |
6000+ Times (≥10 years) @80%DOD |
Extended quantity |
Up to 32pcs ( 160KWh) |
ENVIRONMENT & OTHERS | |
IP level |
IP50 (Indoor scenario) |
Charge temp. |
0 ~ 50’C |
Discharge temp. |
-20 ~ 60’C |
Storage temperature |
-20 ~ 45’C |
Certificate |
Cell: UL1973, UL1642, IEC62619, IEC62133, UN38.3, etc CE,MSDS,UN38.3 |
Dimension & Weight |
580*480*117 / 50±1 Kg |
Compatible inverter |
DEYE, SOFAR,GOODWE,SELECTRONICS, PYLONTECH ETC |
Warranty |
5 years |
Installation and commissioning
NO |
Name |
Quantity |
Picture |
1 |

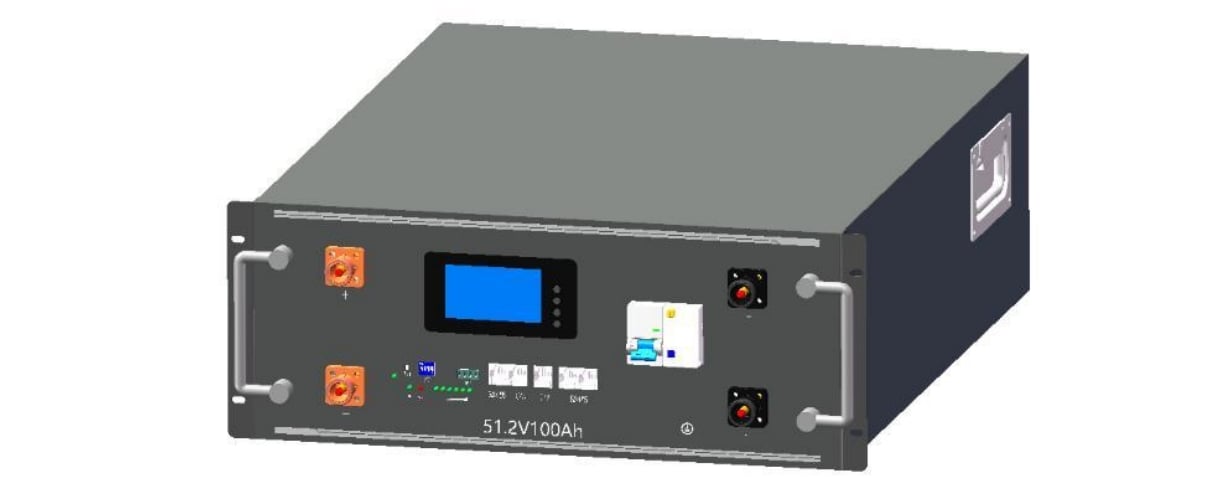

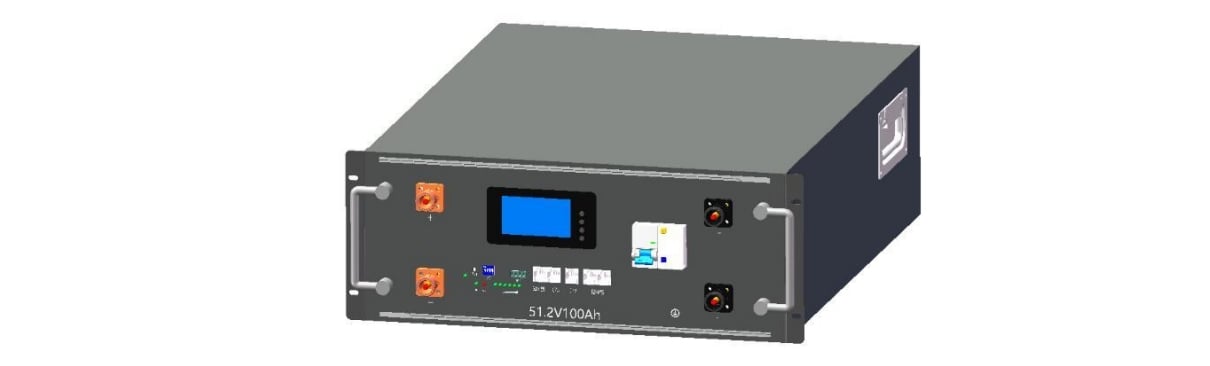

Battery pack |
1 pcs |
|
2 |

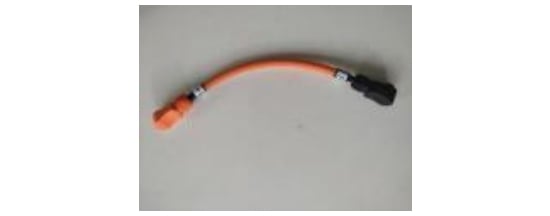

Parallel line (Optional) |
(Optional) |
|
3 |

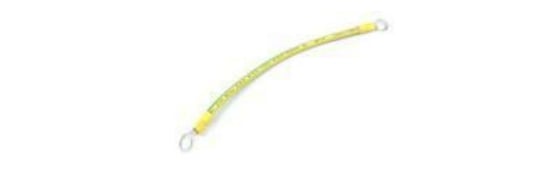

Ground cable (Optional) |
(Optional) |
|
4 |

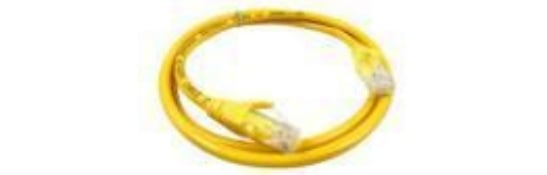

RJ45 cable, yellow 300mm |
(Optional) |
|
5 |

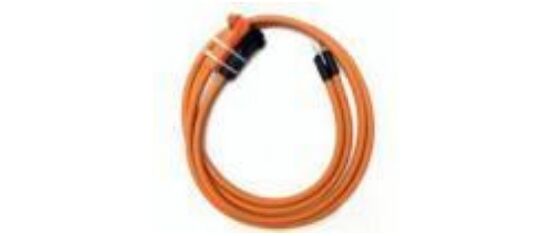

1.5m power cable |
(Optional) |
|
6 |

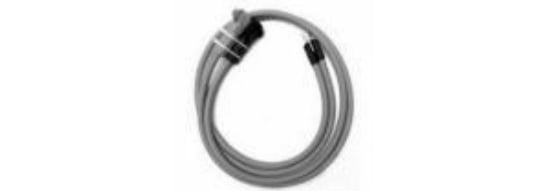

1.5m power cable |
(Optional) |
|
7 |

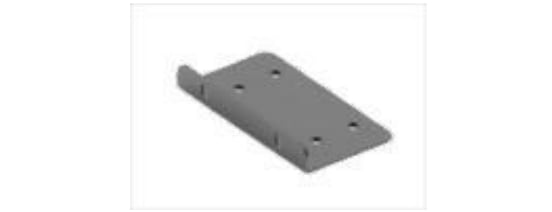

Hanging ears |
(Optional) |
|
